Full Miroku Spring Set – Model 3
$313.50
A set of all three Miroku springs – both hammer springs and a model 3 top lever spring.
Technical Specifications

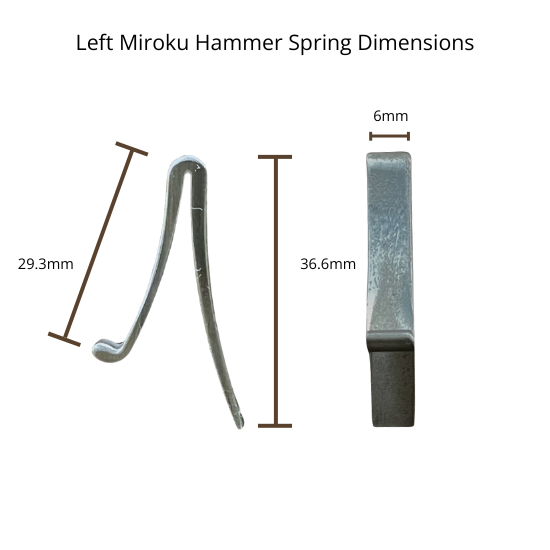

Left Spring
Length of long leg: 36.6mm/1.440 in
Length of short leg: 29.3mm/1.154 in
Width of spring: 6mm/0.236 in

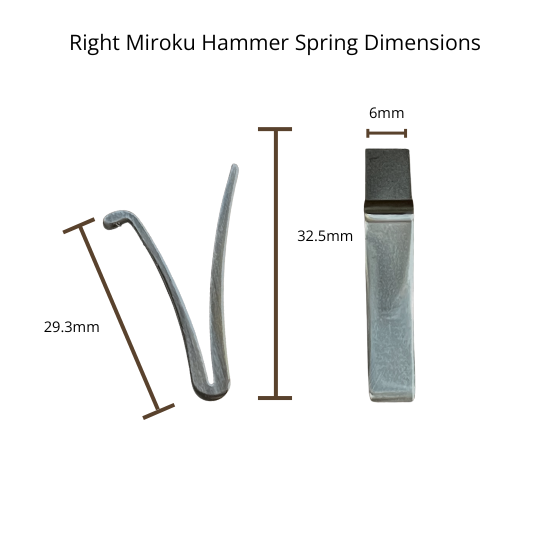

Right spring
Length of long leg: 32.5mm/1.280
Length of short leg: 29.3mm//1.154 in
Width of spring: 6mm/0.236 in

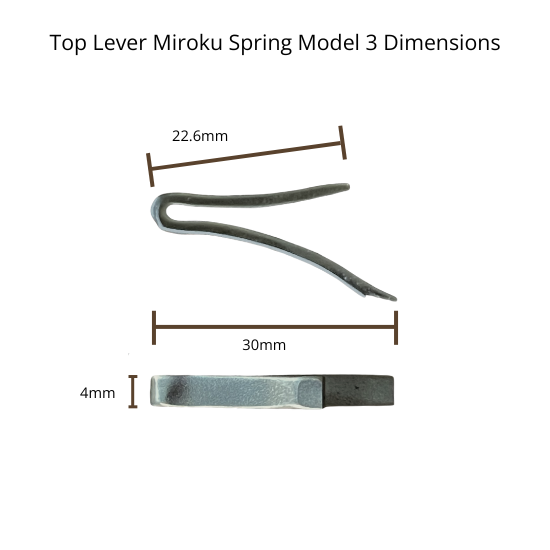

Top Lever Spring – Model 3
Width of spring: 4mm/0.150 in
Long leg length: 30mm/1.181 in
Short leg length: 22.6mm/0.890 in
Material & Manufacture
All Status Guns Miroku springs are made from EN45 high carbon spring steel, heat treated to 45.8 Rockwell C using computer-controlled heat treating equipment. Each is then polished and the edges radiused to help prevent transverse breakage.
Compatibility
Miroku left and right hammer springs are very likely to fit any 12-gauge under/over Miroku, Charles Daly, or other-branded Miroku shotgun. This is because Miroku kept their springs standardised across their entire product range, regardless of brand, part number, grade or gauge. If you have any doubt, especially if you have a 20-gauge model, please compare the broken spring with the dimensions provided on the left and right lever spring pages.
To ensure fit for your top lever spring, please check the dimensions and appearance of your broken spring against the information provided on the Type 3 lever spring product page
